Edges & Vertices

Underlying data structures

The graph class maintains a list of vertices and a dict of edges. For the undirected case, each vertex maintains a list of edges that connect to it, and each edge maintains a reference to the two vertices it connects. In the case of a loop, the edge appears twice in the vertex’s edge list. For the directed case, each vertex maintains two edge lists: a list of outgoing edges and a list of incoming edges.

The graph class provides methods for adding and removing vertices and edges (see Adding and removing vertices and edges) and for querying its structure (see Graph analysis).

What a vertex holds

Each vertex has two private edge lists, plus a back-pointer to its graph.

Attribute	For undirected graphs	For directed graphs
_edgelist	the edges incident on it	the edges leaving it
_inlist	empty	the edges entering it
_graph	the graph it belongs to (None if standalone)	the graph it belongs to (None if standalone)

Every list entry is a reference to the same Edge class object, and there is exactly one edge object for each edge in the graph.

• Undirected: one list does everything, since an undirected edge is both “out” and “in”. That is also why a loop is stored twice, once for each end, and why it counts 2 towards degree.

• Directed: the two lists are the out-list and the in-list. A loop sits once in each, so degree (in + out) is 2 there too.

An example, as lists

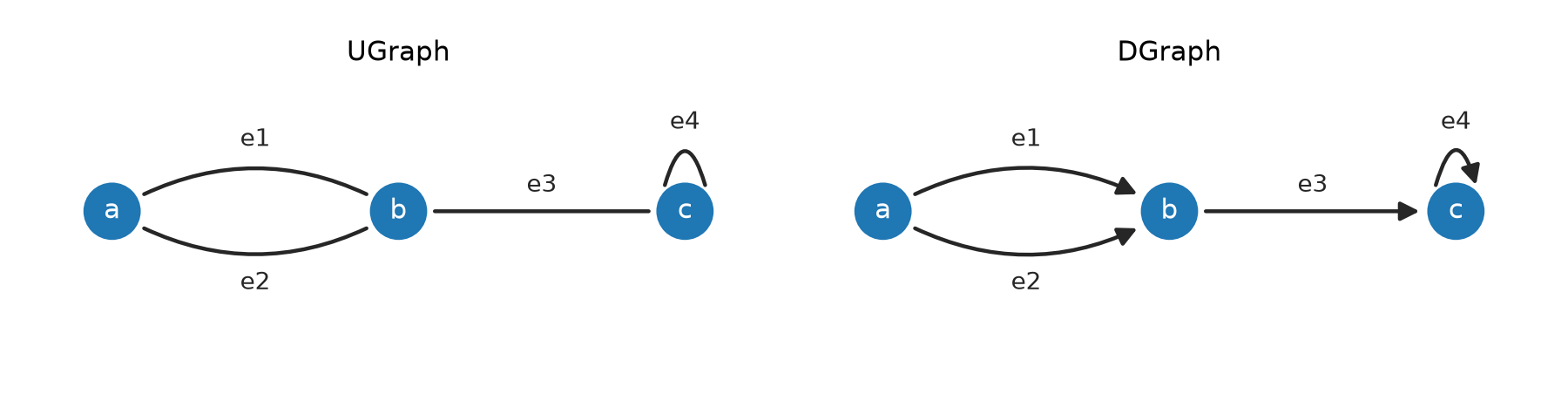

For these simple graphs

(Source code, png, hires.png, pdf)

The vertices a, b and c and edges e1 and e2 are added in that order. The resulting vertex lists are

Vertex name	UGraph _edgelist	DGraph _edgelist	DGraph _inlist
a	[e1, e2]	[e1, e2]	[]
b	[e1, e2, e3]	[e3]	[e1, e2]
c	[e3, e4, e4]	[e4]	[e3, e4]

The graph also keeps every edge once in graph._edges (an insertion-ordered dict, so [e1, e2, e3, e4]).

The public view of those lists

Method	Returns for UGraph	Returns for DGraph
edges(), out_edges()	a copy of _edgelist	a copy of _edgelist
in_edges()	a copy of _edgelist	a copy of _inlist
degree	len(_edgelist)	len(_edgelist) + len(_inlist)
in_degree	len(_edgelist)	len(_inlist)
out_degree	len(_edgelist)	len(_edgelist)
adjacent()	the far end of each edge in _edgelist	the far end of each edge in _edgelist
incidences()	adjacent() paired with out_edges()	adjacent() paired with out_edges()

All are returned in the order the edges were connected.

Working with vertices and edges directly

In the earlier examples we did not explicitly create vertices or edges, but we can do so if we want to. The graph classes provide methods to create vertices and edges, and to add them to the graph.

>>> from pgraph import UGraph, Vertex, Edge
>>> import numpy as np
>>> g = UGraph()

Next, we will explicitly create two vertices

>>> v1 = Vertex(np.random.rand(2))
>>> v2 = Vertex(np.random.rand(2))

and then add them to the graph

>>> g.add_vertex(v1)
Vertex[#0, coord=(0.585, 0.6603)]
>>> g.add_vertex(v2)
Vertex[#1, coord=(0.3724, 0.2729)]

Our graph now has two vertices, but no edges

>>> print(g)
UGraph: 2 vertices, 0 edges, 2 components

We can explicitly create an edge between the two vertices

>>> e = Edge(v1, v2)

and then add it to the graph

>>> g.add_edge(e)
Edge{[#0] -- [#1], cost=0.4419}
>>> print(g)
UGraph: 2 vertices, 1 edge, 1 component

Creating the edge and then adding it to the graph, as above, is equivalent to

>>> e = Edge()
>>> e.connect(v1, v2)

Alternatively, we can create a vertex and connect it to an existing vertex, which will implicitly create an edge between the two vertices and add it to the graph.

>>> v3 = Vertex(np.random.rand(2))
>>> g.add_vertex(v3)
Vertex[#2, coord=(0.5325, 0.4762)]
>>> v2.connect(v3)
Edge{[#1] -- [#2], cost=0.2588}
>>> print(g)
UGraph: 3 vertices, 2 edges, 1 component

The connect method of the vertex class creates an edge between the two vertices and adds it to the graph. The two vertices must have been added to the same graph for the edge to be created. The connect method is the same for directed and undirected graphs: the graph decides how the edge is recorded at its vertices.

Note

Wherever a vertex or edge is required, a subclass of the appropriate base class can be used. For example, we can create a subclass of Vertex called MyVertex and a subclass of Edge called MyEdge and then create a new graph using these classes, by passing them as the vertex_class and edge_class arguments of the graph constructor.

The Vertex class

class Vertex(coord=None, name=None)

Bases: object

A vertex of a graph, directed or undirected.

A vertex has no direction of its own: how an edge is recorded at its ends is decided by the graph it belongs to (see UGraph and DGraph). So there is one vertex class, which can be subclassed to give user objects graph capability and passed to the graph as vertex_class.

Changed in version 1.0: This replaces UVertex and DVertex, which are deprecated names for it. They differed only in how an edge was recorded, which is now the graph’s decision.

Each vertex has:

• name which is its key in the graph, so renaming a vertex that is in a graph updates the graph

• label an int indicating which graph component contains it, read-only: the graph assigns it

• coord the coordinate in an embedded graph (optional)

and its edges are available from edges(), out_edges() and in_edges().

Seealso:

Graph Edge

__init__(coord=None, name=None)

Create a vertex object

Parameters:

• coord (array-like, optional) – coordinate of the vertex for an embedded graph, defaults to None

• name (str, optional) – vertex name, defaults to None

Creates a vertex but does not add it to a graph – use Graph.add_vertex() for that.

>>> from pgraph import Vertex
>>> v1 = Vertex(coord=[0,0], name='v1')
>>> print(v1)
[v1]

Seealso:

Graph.add_vertex()

The Edge class

class Edge(v1=None, v2=None, cost=None, data=None)

Bases: object

Edge class

Is used to represent directed and undirected edges.

Each edge has a cost, arbitrary data, and two vertices v1 and v2, which are read-only: the start and end vertex for a directed edge.

cost: float | None

cost of traversing this edge, required for planning methods

data: Any

reference to arbitrary data associated with the edge

Note

• An undirected graph is created by having a single edge object in the edgelist of _each_ vertex.

• This class can be inherited to provide user objects with graph capability.

• Inheritance is an alternative to providing arbitrary user data.

• Pass the subclass as edge_class when constructing the graph and the graph will create instances of it itself, see Graph.

An Edge points to a pair of vertices. At connect time the vertices get references back to the Edge object.

graph.add_edge(v1, v2) calls v1.connect(v2)

Seealso:

Vertex

__init__(v1=None, v2=None, cost=None, data=None)

Create an edge object

Parameters:

• v1 (Vertex, optional) – start of the edge, defaults to None

• v2 (Vertex, optional) – end of the edge, defaults to None

• cost (any, optional) – edge cost, defaults to None

• data (any, optional) – edge data, defaults to None

Creates an edge but does not connect it to the vertices or add it to the graph.

If vertices are given, and have associated coordinates, the edge cost will be computed according to the distance measure associated with the graph.

data is a way of associating any object with the edge, its value can be found as the .data attribute of the edge. An alternative approach is to subclass the Edge class.

Note

To compute edge cost from the vertices, both vertices must have already been added to the same graph – otherwise cost is left as None rather than raising, since this constructor is also used standalone, independent of any graph.

Seealso:

Edge.connect() Vertex.connect()

connect(v1, v2)

Attach this edge to a pair of vertices

Parameters:

• v1 (Vertex subclass) – start of the edge

• v2 (Vertex subclass) – end of the edge

Raises:

• ValueError – either vertex has not been added to a graph, or the vertices belong to different graphs

• TypeError – this edge is not an instance of the graph’s Graph.edge_class

Return type:

None

The edge connects vertices v1 and v2, and is added to the graph that those vertices belong to.

Warning

Intended for an edge that is not yet part of a graph. The edge’s v1 and v2 are overwritten without checking, so connecting an edge that is already in a graph leaves it referenced from its old vertices as well.

>>> from pgraph import Vertex, Edge, UGraph
>>> g = UGraph()
>>> v1 = g.add_vertex(coord=[0,0], name='v1')
>>> v2 = g.add_vertex(coord=[1,1], name='v2')
>>> e = Edge(cost=1.414)
>>> e.connect(v1, v2)
>>> print(e)
Edge{[v1] -- [v2], cost=1.414}

Note

The vertices must already be added to the graph.

Seealso:

Vertex.connect()

property endpoints: list[Vertex]

The two vertices of this edge

Returns:

start and end vertex

Return type:

list of Vertex subclass

>>> from pgraph import Vertex, Edge
>>> v1 = Vertex(coord=[1,2], name="A")
>>> v2 = Vertex(coord=[3,4], name="B")
>>> e = Edge(v1, v2, cost=5.0, data="A to B")
>>> print(e)
Edge{[A] -- [B], cost=5} data=A to B
>>> print(e.endpoints)
[Vertex[A, coord=(1, 2)], Vertex[B, coord=(3, 4)]]

Seealso:

vertices()

next(vertex)

Return other end of an edge

Parameters:

vertex (Vertex subclass) – one vertex on the edge

Raises:

ValueError – vertex is not on the edge

Returns:

the other vertex on the edge

Return type:

Vertex subclass

e.next(v1) is the vertex at the other end of edge e, ie. the vertex that is not v1.

>>> from pgraph import Vertex, Edge
>>> v1 = Vertex(coord=[1,2], name="A")
>>> v2 = Vertex(coord=[3,4], name="B")
>>> e = Edge(v1, v2, cost=5.0, data="A to B")
>>> print(e)
Edge{[A] -- [B], cost=5} data=A to B
>>> e.next(v1)
Vertex[B, coord=(3, 4)]
>>> e.next(v2)
Vertex[A, coord=(1, 2)]

remove()

Remove this edge from its graph

Raises:

ValueError – the edge is not connected to a graph

e.remove() removes e from its graph’s own edge collection and from its connected vertices’ edge lists (both, for an undirected edge; the source only, for a directed one – see Graph.remove_edge()), and clears e.v1/e.v2 to None. The Edge object itself is not deleted – it becomes an orphaned, disconnected shell, and calling remove() on it again raises ValueError.

Note

This is a thin convenience wrapper around Graph.remove_edge().

Return type:

None

>>> from pgraph import UGraph
>>> g = UGraph()
>>> v1 = g.add_vertex(coord=[0,0], name='v1')
>>> v2 = g.add_vertex(coord=[1,1], name='v2')
>>> e = g.add_edge(v1, v2)
>>> e.remove()
>>> print(g)
UGraph: 2 vertices, 0 edges, 2 components

Seealso:

Graph.remove_edge() Vertex.remove()

property v1: Vertex | None

First vertex of the edge, the start vertex for a directed edge

Returns:

the vertex, or None if the edge is not connected

Return type:

Vertex subclass or None

Changed in version 1.0: Read-only. It was a plain attribute, so assigning to it on an edge that was in a graph left the graph inconsistent: the vertices’ edge lists no longer agreed with the edge, and the edge could not be removed. Give the vertices to the constructor, Edge(v1, v2), or to connect() or Vertex.connect().

Seealso:

v2 connect()

property v2: Vertex | None

Second vertex of the edge, the end vertex for a directed edge

Returns:

the vertex, or None if the edge is not connected

Return type:

Vertex subclass or None

Read-only, see v1.

Seealso:

v1 connect()

vertices()

Vertices of an edge (deprecated)

Returns:

the two vertices of this edge

Return type:

list of Vertex subclass

Deprecated since version use: endpoints instead
