machinevisiontoolbox.Image.Hstack

classmethod Image.Hstack(images, sep=1, bgcolor=None, return_offsets=False)

Horizontal concatenation of images

Parameters:

• images (iterable of Image) – images to concatenate horizontally

• sep (int, optional) – separation between images, defaults to 1

• bgcolor (scalar, string, array_like, optional) – color of background, seen in the separation between images, defaults to black

• return_offsets (bool, optional) – additionally return the horizontal coordinates of each input image within the output image, defaults to False

Raises:

• ValueError – all images must have the same dtype

• ValueError – all images must have the same color order

Returns:

horizontally stacked images

Return type:


Create a new image by stacking the input images horizontally, with a vertical separator line of width sep and color bgcolor.

The horizontal coordinate of the first column of each image, in the composite output image, can be optionally returned if return_offsets is True.

Example:

>>> from machinevisiontoolbox import Image
>>> img = Image.Read('street.png')
>>> img
Image: 1280 x 851 (uint8) [.../images/street.png]
>>> Image.Hstack((img, img, img))
Image: 3842 x 851 (uint8)

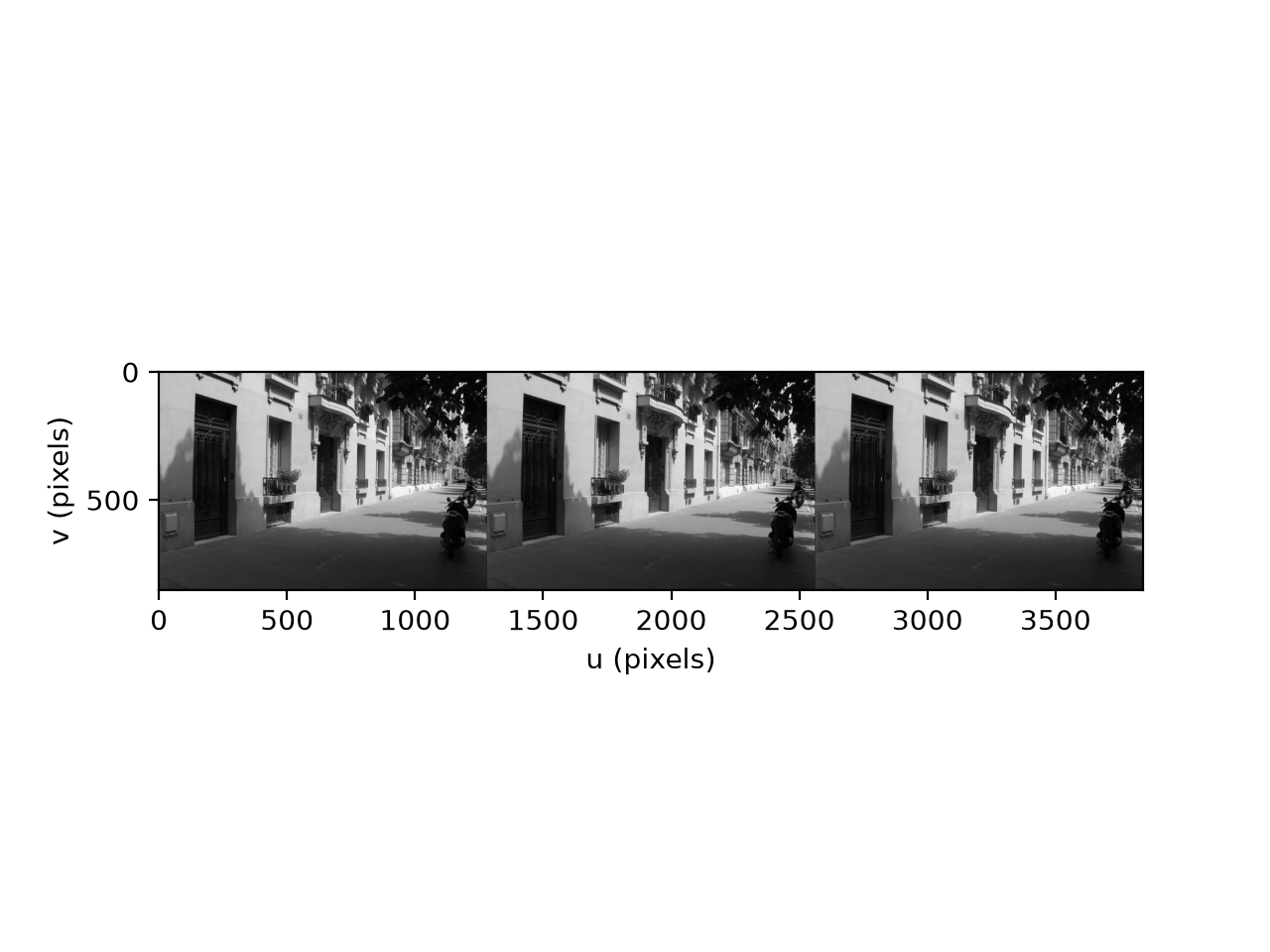

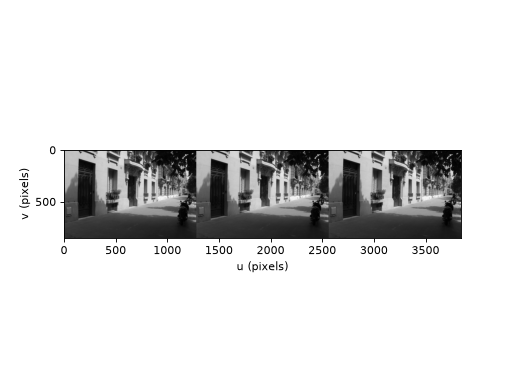

>>> Image.Hstack((img, img, img), return_offsets=True)
(Image: 3842 x 851 (uint8), [0, 1281, 2562])

(Source code, png, hires.png, pdf)

Seealso:

Vstack Tile
