Blobs.MER#
- property Blobs.MER: Any#
Minimum enclosing rectangle of blob
- Returns:
Parameters of the minimum enclosing rectangle
- Return type:
ndarray(5) or list of ndarray(5)
The minimum enclosing rectangle is the smallest rectangle that can fully contain the blob. It is specified by a 5-tuple (uc, vc, w, h, theta) where (uc, vc) is the center, (w, h) is the width and height, and theta is the orientation.
Example:

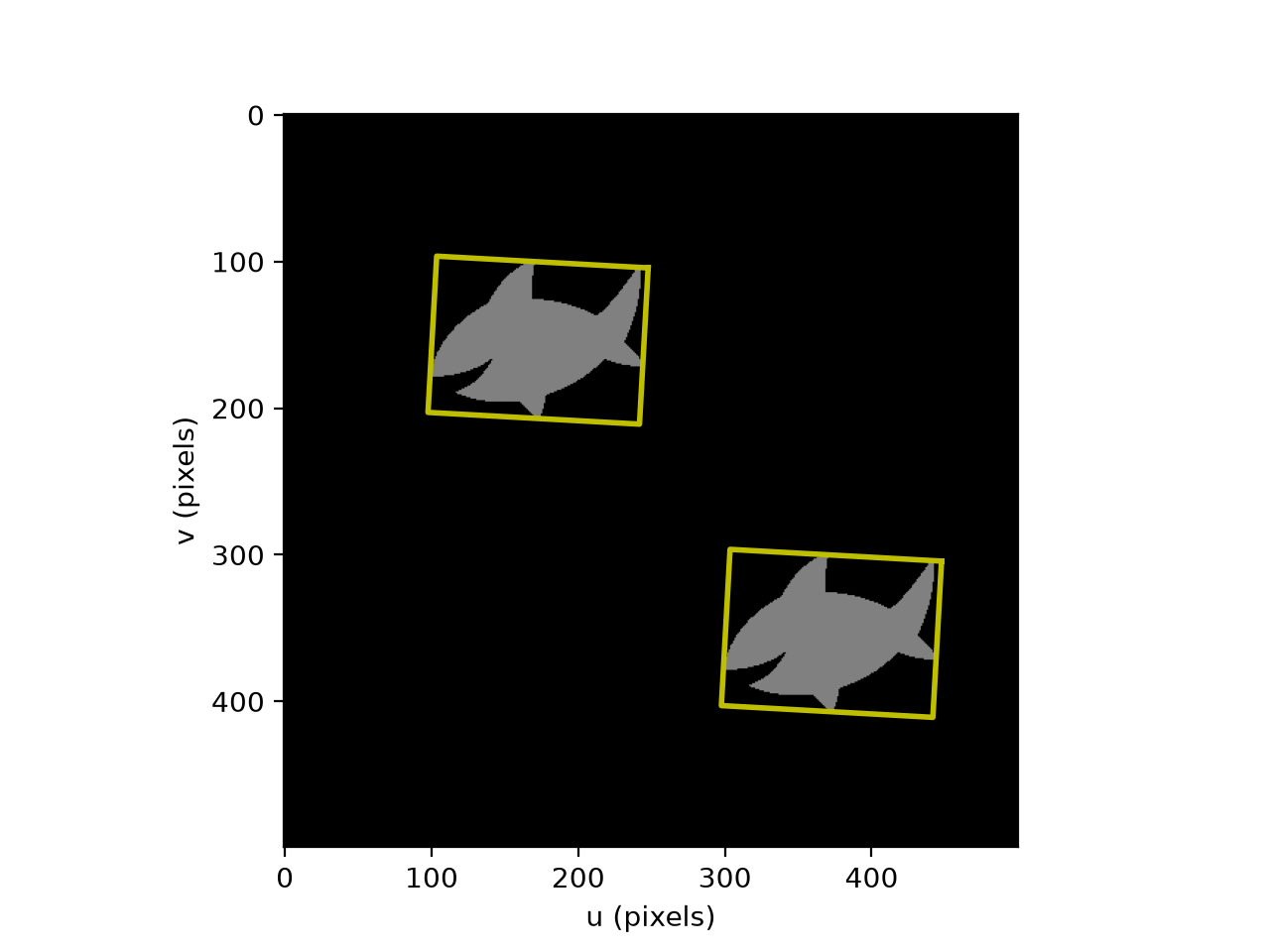

>>> from machinevisiontoolbox import Image >>> im = Image.Read('shark2.png') >>> blobs = im.blobs() >>> blobs.MER [array([372.6061, 353.5892, 106.7243, 144.3885, -86.8202]), array([172.6062, 153.5892, 106.7243, 144.3885, -86.8202])]
(
Source code,png,hires.png,pdf)
- Seealso:
