Blobs.plot_MER

Blobs.plot_MER(*args, **kwargs: Any) → None

Plot minimum enclosing rectangles of blobs using Matplotlib

Parameters:

kwargs – line style parameters passed to plot

Plots the minimum enclosing rectangles of blob or blobs on the current Matplotlib axes.

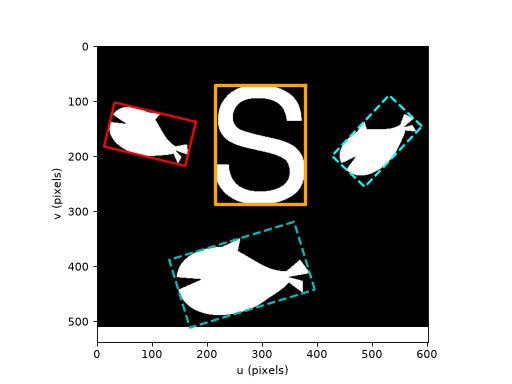

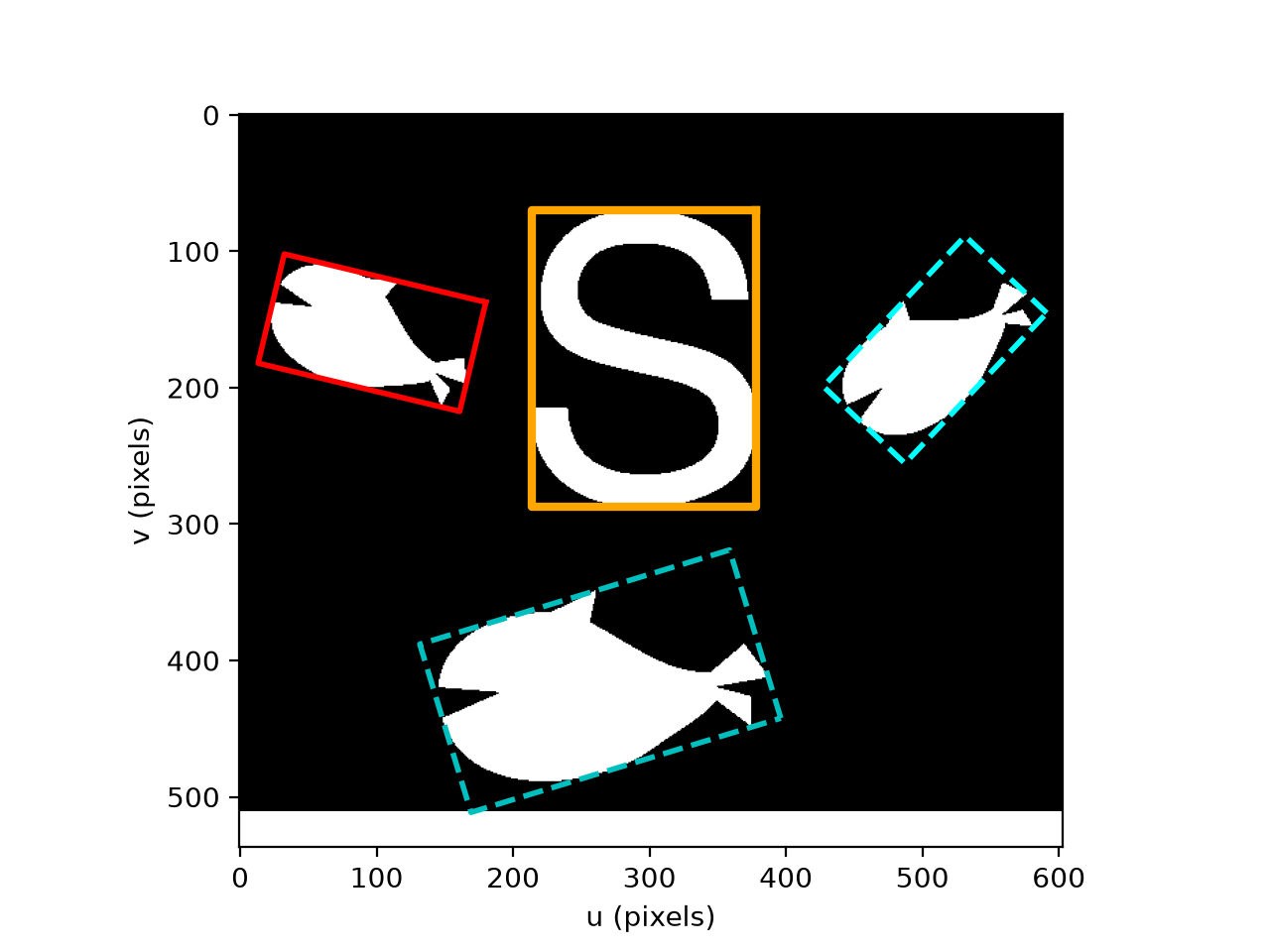

Example:

>>> from machinevisiontoolbox import Image
>>> im = Image.Read("sharks.png")
>>> blobs = im.blobs()
>>> blobs.plot_MER() # MEC for all blobs, different colors
>>>
>>> blobs[0].plot_MER("c--") # cyan dashed line
>>> blobs[1].plot_MER(color="cyan", linestyle="--") # cyan dashed line
>>> blobs[2].plot_MER(color="red")
>>> blobs[3].plot_MER(color="orange", linewidth=3)

(Source code, png, hires.png, pdf)

Seealso:

MER MEC plot_box plot_aligned_box plot_centroid
