Blobs.plot_box

Blobs.plot_box(*args, **kwargs: Any) → None

Plot a bounding box for the blob using Matplotlib

Parameters:

• arg

• kwargs – arguments passed to plot_box

Plot the bounding box of a blob or blobs on the current Matplotlib axes.

Example:

>>> from machinevisiontoolbox import Image
>>> im = Image.Read("sharks.png")
>>> blobs = im.blobs()
>>> blobs.plot_box(color="yellow") # solid yellow box for all blobs

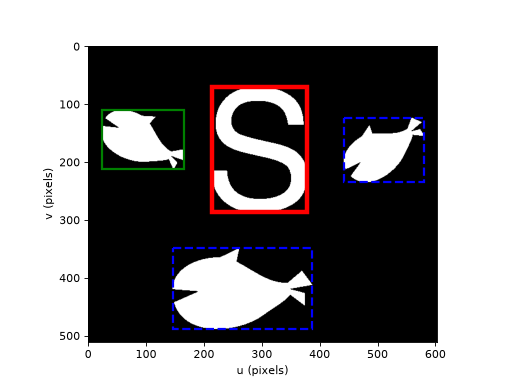

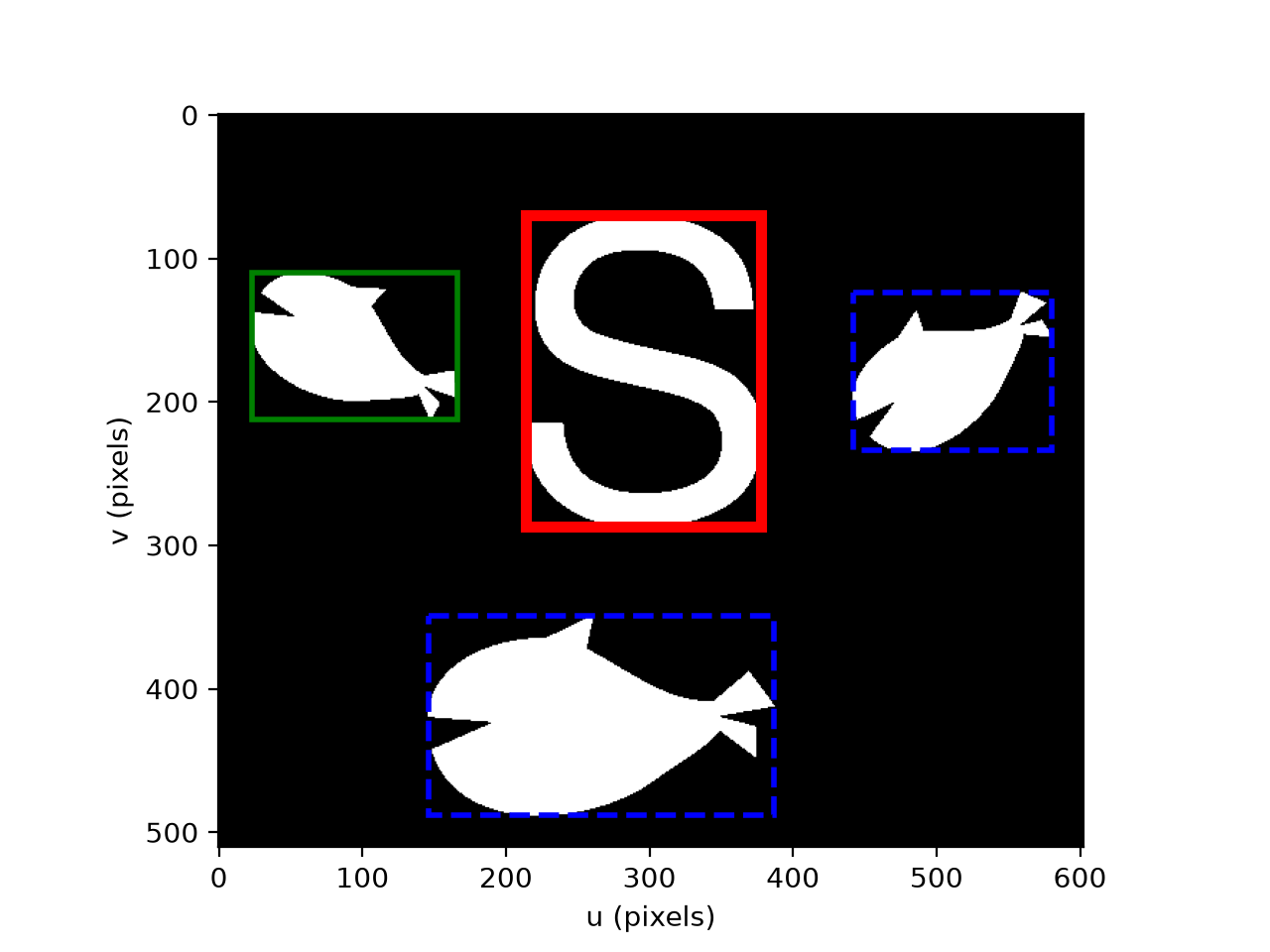

Example:

>>> blobs[0].plot_box('b--') # blue dashed box
>>> blobs[1].plot_box(color="blue", linestyle="--") # blue dashed box
>>> blobs[2].plot_box(color="g") # solid green box
>>> blobs[3].plot_box(color="r", linewidth=4)

(Source code)

Seealso:

plot_labelbox plot_centroid plot_perimeter plot_box
